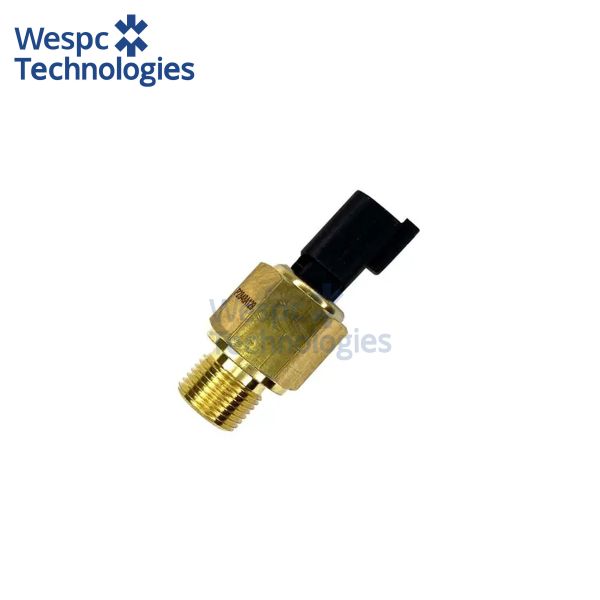

WESPC Water Temperature Sensor 2848A129 For Perkins 1104D-44 1104D-44T 1104D-44TA
| Brand Name | WESPC |
| Place of Origin | China |
| Part Number | 2848A129 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Water Temperature Sensor 2848A129 is purpose-built for the Perkins 1103A-33, 1103A-33T, 1103C-33, 1103C-33T, 1103D-33, 1104A-44, 1104A-44T, 1104C-44, 1104C-44T, 1104C-44TA, 1104D-44, 1104D-44T and 1104D-44TA turbocharged diesel engines (3.3 L to 4.4 L). These power units are widely installed in Massey Ferguson 2400, 3400, 5400 and 5700 SL orchard tractors, mid-range combine harvesters, 50–120 kVA generator sets for prime or standby power, plus compact wheel loaders, skid-steer loaders and 7- to 14-ton hydraulic excavators used in agriculture, construction and material-handling sectors worldwide.
Technical specifications:
Thread interface M14 × 1.5 parallel with 19 mm hex and 18 mm probe reach for direct insertion into the cylinder-head coolant gallery. Sensing range –40 °C to +140 °C via a precision NTC thermistor calibrated 2 500 Ω @ 20 °C, 300 Ω @ 80 °C, 120 Ω @ 110 °C, tolerance ±2 %.
Material & performance features:
Probe body is precision-machined from 1.4571 (AISI 316Ti) stainless steel for complete immunity to glycol, long-life organic-acid coolants and galvanic corrosion; a copper crush-washer and fluorosilicone O-ring ensure leak-free sealing up to 3 bar system pressure. Electronics are fully encapsulated in high-temperature epoxy potting compound, thermal-shock-tested 1 000 cycles –40 °C↔+150 °C, salt-spray-tested 96 h per ASTM B117, EMI-suppressed circuitry compliant with SAE J1113-42 for reliable ECU feedback, MTBF > 500 000 engine hours.
Interchange part numbers:
2848A129, 10000-59836, 4224844M1, 4222211M1, 2755A023.
