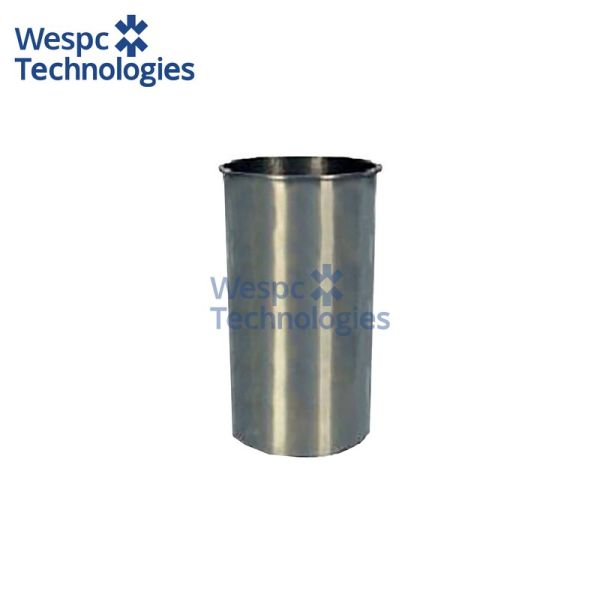

WESPC 31358394 Cylinder Liner Sleeve for Perkins Perkins 6.354, 6.354.4 Series
| Brand Name | WESPC |
| Place of Origin | China |
| Part Number | 31358394 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application
WESPC 31358394 cylinder liner sleeve is designed for Perkins 6.354 and 6.354.4 diesel engines. This flanged, finished-type liner provides a precision-machined bore surface for piston travel, ensuring optimal compression and wear resistance within the combustion chamber. It is inserted into the engine block as part of a wet-type configuration, allowing direct coolant contact for enhanced thermal regulation and long-term durability.
Generator sets
Used in 100–200 kVA Perkins-powered generator sets equipped with 6.354 series engines. The 31358394 liner supports stable combustion sealing and efficient heat dissipation, contributing to fuel economy and reliable performance in agricultural and industrial power systems.
Industrial systems
Suitable for Perkins 6-cylinder engines installed in tractors, irrigation pumps, and construction machinery. The liner maintains structural integrity under thermal cycling and mechanical stress, making it ideal for continuous-duty applications in rugged environments.
Technical specifications
Part number: 31358394
Function: wet-type cylinder liner sleeve
Material: high-strength alloy cast iron
Compatible engines: Perkins 6.354, 6.354.4
Dimensions: approx. 98.48 mm bore × 135 mm stroke
Warranty: 12 months
Interchange part number:
31358394; verified fitment for Perkins 6-cylinder engines in generator and industrial applications
