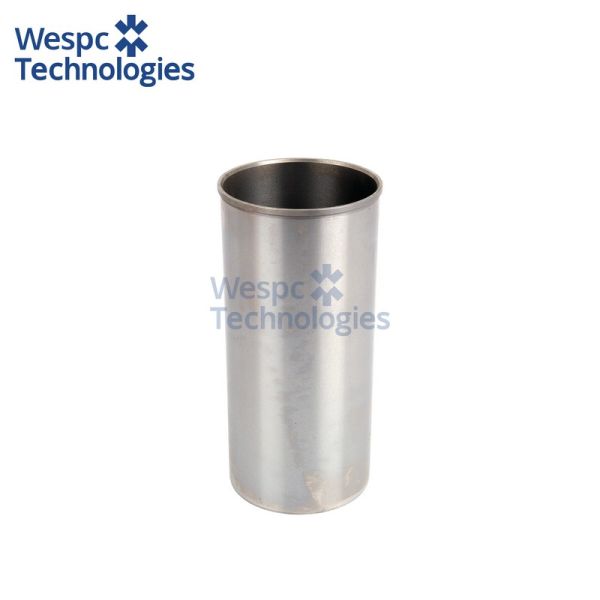

WESPC 3135X033 Cylinder Liner For Perkins 1004 1006 Series Diesel Engines

Application

WESPC 3135X033 cylinder liner sleeve is designed for Perkins 1004 and 1006 series diesel engines. This semi-finished wet-type liner features a flanged design and is inserted into the engine block with direct coolant contact. It provides a durable combustion chamber wall and allows final honing during engine rebuilds, ensuring precise piston fit and optimal sealing under high-load conditions.

Generator sets

Used in 100–200 kVA Perkins-powered generator sets equipped with 1000 series engines. The 3135X033 liner supports stable compression and efficient thermal regulation, contributing to fuel economy and long-term reliability in industrial and commercial power systems.

Industrial systems

Applicable to Perkins 4-cylinder and 6-cylinder engines installed in agricultural tractors, irrigation pumps, and construction machinery. Its semi-finished bore allows for precision machining to match rebuild tolerances, making it ideal for continuous-duty applications in rugged environments.

Technical specifications

Part number: 3135X033

Function: semi-finished wet-type cylinder liner sleeve with flange

Material: high-strength alloy cast iron

Compatible engines: Perkins 1004, 1006 series

Dimensions: approx. 105 mm bore × 135 mm stroke

Warranty: 12 months

Interchange part number

3135X033; verified fitment for Perkins 1000 series engines in generator and industrial applications
